NBC-200 control board reference

This page is for the NBC-200 control board rather than the separate wire-feeding board. Use it when the fault involves feedback, 24V control supply, thermal-switch input, drive socket, DC540V interface, indicator-lamp wiring or the connection from the control board to the wire-feeding board.

NBC-200 control board annotated image

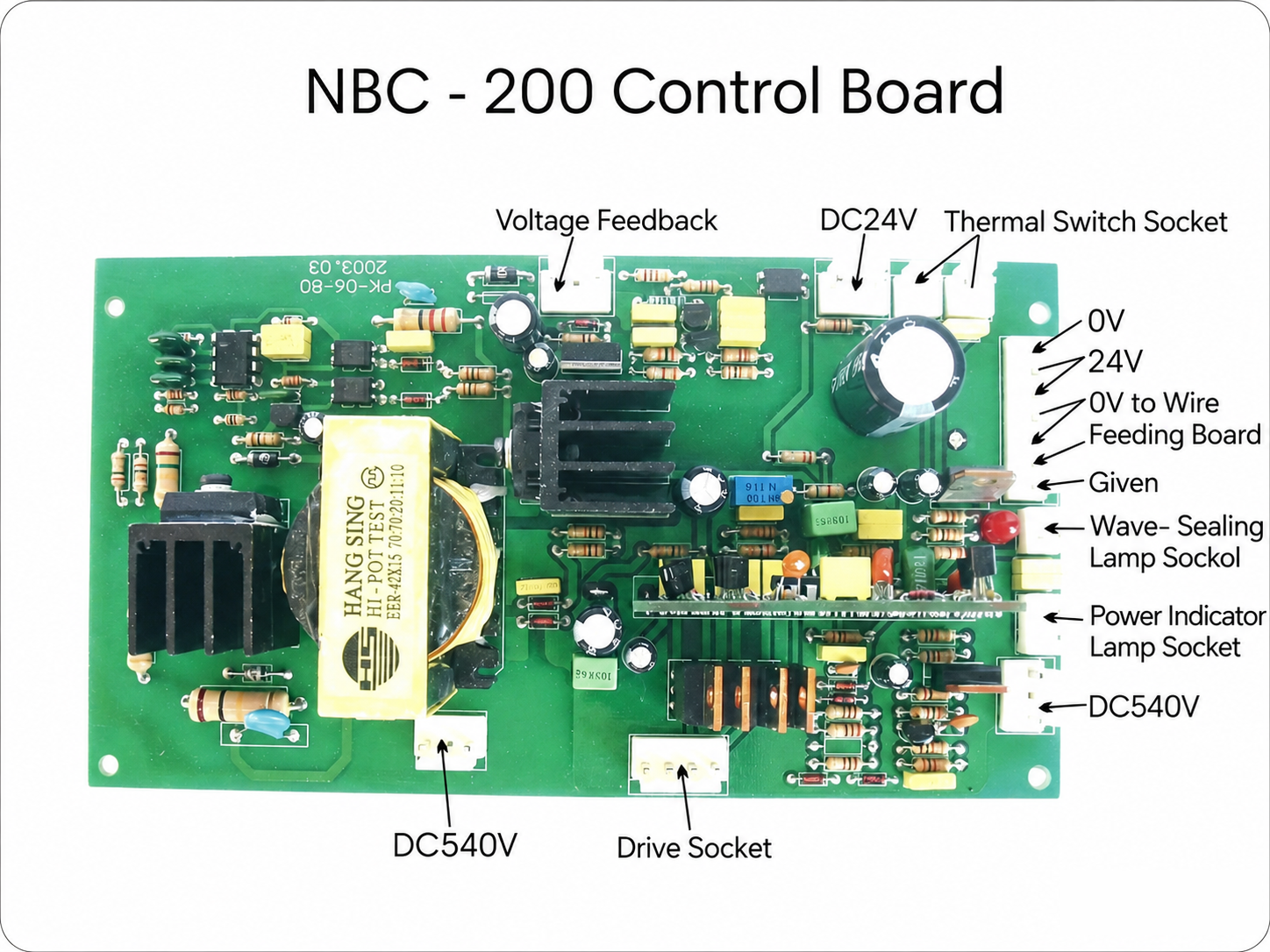

This annotated control-board image identifies the voltage feedback input, DC24V point, thermal switch socket, 0V / 24V connection to the wire-feeding board, given input, wave-sealing lamp socket, power indicator lamp socket, DC540V point and drive socket.

NBC-200 control board annotated reference with voltage feedback, DC24V, thermal switch socket, 0V and 24V to wire feeding board, given input, wave sealing lamp socket, power indicator lamp socket, DC540V and drive socket
NBC-200 control board orientation image for feedback, control-power, thermal-input and drive-socket diagnosis.
Feedback / protection sideVoltage feedback and thermal-switch socket checks help separate real protection from missing or false feedback.
Wire-feeder interface0V / 24V to the wire-feeding board explains why feed faults may begin at the control board.
Drive and DC bus interfaceDrive socket and DC540V point are important orientation references before board-level troubleshooting.

How to use this page

Related NBC / MIG references

Safety note

This reference is for qualified repair technicians. CO2/MIG welders can contain lethal voltage and charged capacitors after power is removed. Do not treat a board image as a live-measurement map unless the exact board revision, discharge state and isolation condition are verified.
