NBC wire feeder board reference

Use this page when an NBC / CO2-MIG welder has no wire feed, uncontrolled wire feed, gas-valve problems, burn-back faults or 2T/4T trigger problems. The goal is to separate mechanical feeder issues from 24V supply, torch input, relay, PWM and motor-output faults before replacing the board.

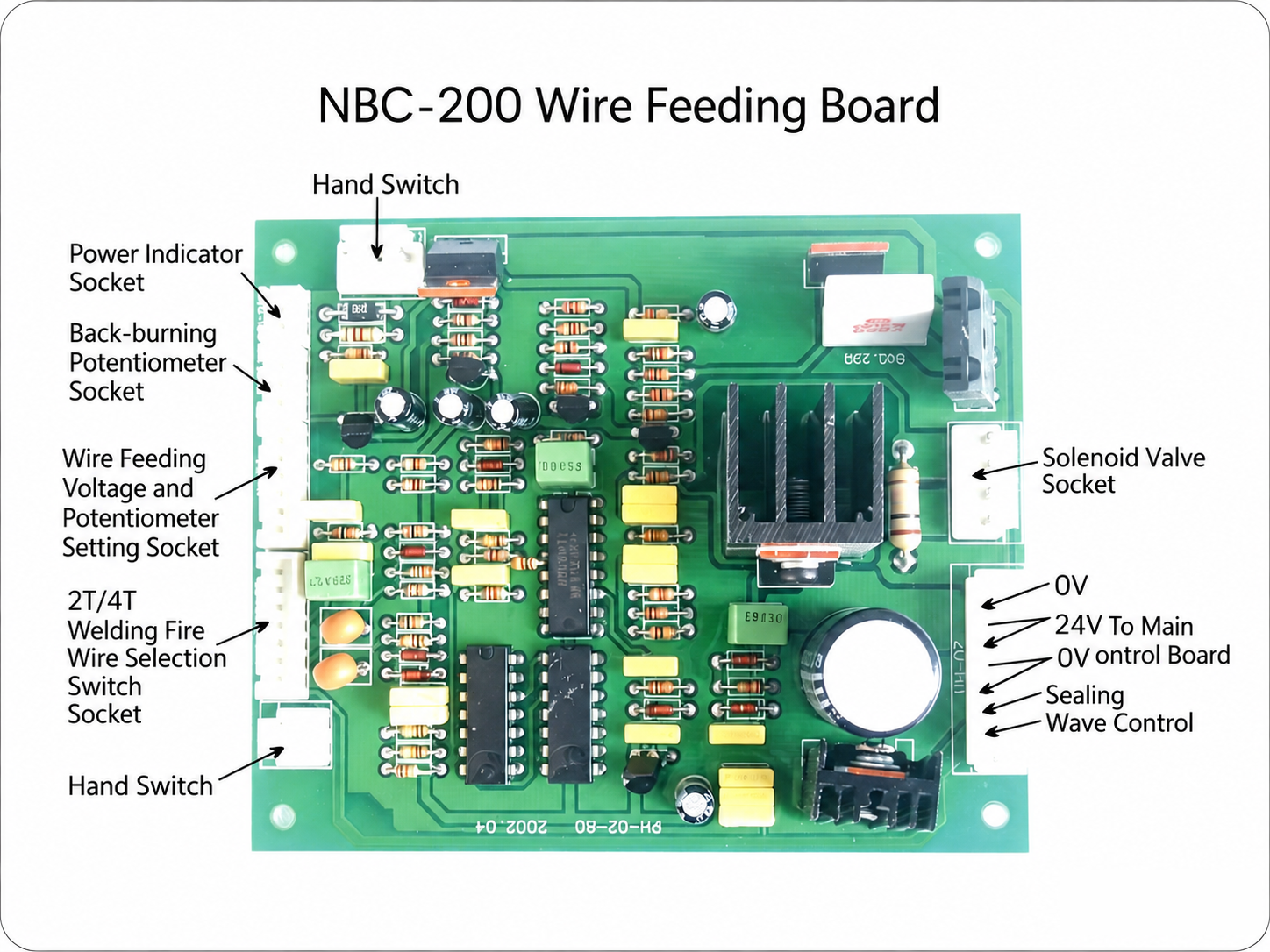

NBC-200 wire feeding board reference image

This annotated board image belongs on the NBC wire-feeder board reference page. Use it to locate the hand-switch input, power-indicator socket, back-burn potentiometer socket, wire-feeding voltage and setting socket, 2T/4T wire-selection socket, solenoid-valve socket and 24V / 0V connection to the main control board.

NBC-200 wire feeding board annotated reference with hand switch, power indicator socket, back-burn potentiometer socket, wire feeding voltage setting socket, solenoid valve socket and 24V to main control board
NBC-200 wire feeding board orientation image for wire-feed and burn-back diagnosis.
Torch / hand-switch inputHand-switch input and mode-selection socket are useful first checks when no wire-feed action occurs.
Wire-feed controlWire-feeding voltage, potentiometer setting and burn-back socket help separate command faults from output-stage faults.
Output / interface sideSolenoid valve, 0V / 24V and sealing-wave control connect this board to the control-board and welding sequence.

Board role map

The wire feeder board is not only a motor driver. In many NBC-style CO2/MIG machines it receives torch/hand-switch logic, 24V control power, mode selection, voltage/current command signals and then controls the motor output, gas-valve sequence, burn-back timing and sometimes crater/slow-feed behavior.

Torch triggerHand switch or gun switch input reaches the feeder/control logic.
24V control railRelay coils, logic supply and motor drive command depend on stable control power.
Gas valveSolenoid output should act before or with wire-feed command depending on sequence.
PWM stageTL494/TL598-style controller and LM324 logic set motor speed.
Motor outputFeeder motor receives controlled DC output through transistor/MOSFET/relay path.
Burn-backAfter torch release, wire stop and output timing are delayed or cut according to setting.

Connector and function checklist

AreaWhat to identifyField symptom when wrong
24V / 0VMain control supply, relay supply and motor-driver bias reference.No relay action, no motor drive, no gas valve, dead panel response.
Torch switchInput from gun trigger or hand switch; often routed through connector harness.Machine has standby power but no gas, no wire feed, no arc command.
Gas valve outputSolenoid relay or transistor output path to the valve connector.Wire feeds but gas does not open; or gas clicks but no downstream sequence.
Motor outputFeeder-motor connector, power transistor/MOSFET path and flyback protection.No wire feed, weak wire feed, motor runs only at full speed or does not stop.
2T / 4T selectionMode switch input and latch/logic path.Trigger behavior is wrong, wire continues after release, or no hold function.
Burn-backBurn-back potentiometer, timing capacitor/resistor and stop sequence.Wire sticks to tip, burns back too far, or motor stops at the wrong moment.
Voltage/current setPotentiometer or command signal from front panel/main control board.Speed not adjustable or feeder response mismatches panel setting.

Do not replace the feeder board first

Confirm mechanical drag, liner/tip blockage, motor condition, 24V rail, trigger input and connector harness before replacing TL494/TL598, LM324, relay or the whole feeder board. Many no-wire-feed faults are power, switch, harness or mechanical faults rather than a bad PWM IC.

Related NBC routes

Related NBC-200 control board

For feedback, thermal-switch, DC24V, DC540V and drive-socket orientation, use the dedicated NBC-200 control board reference.
