WS-180P upper board reference

This is the dedicated WS-180P upper-board page. Future real board photos, board revision notes, connector close-ups, test-point notes and practical repair evidence should be added here instead of being mixed into a broader WS board-family page.

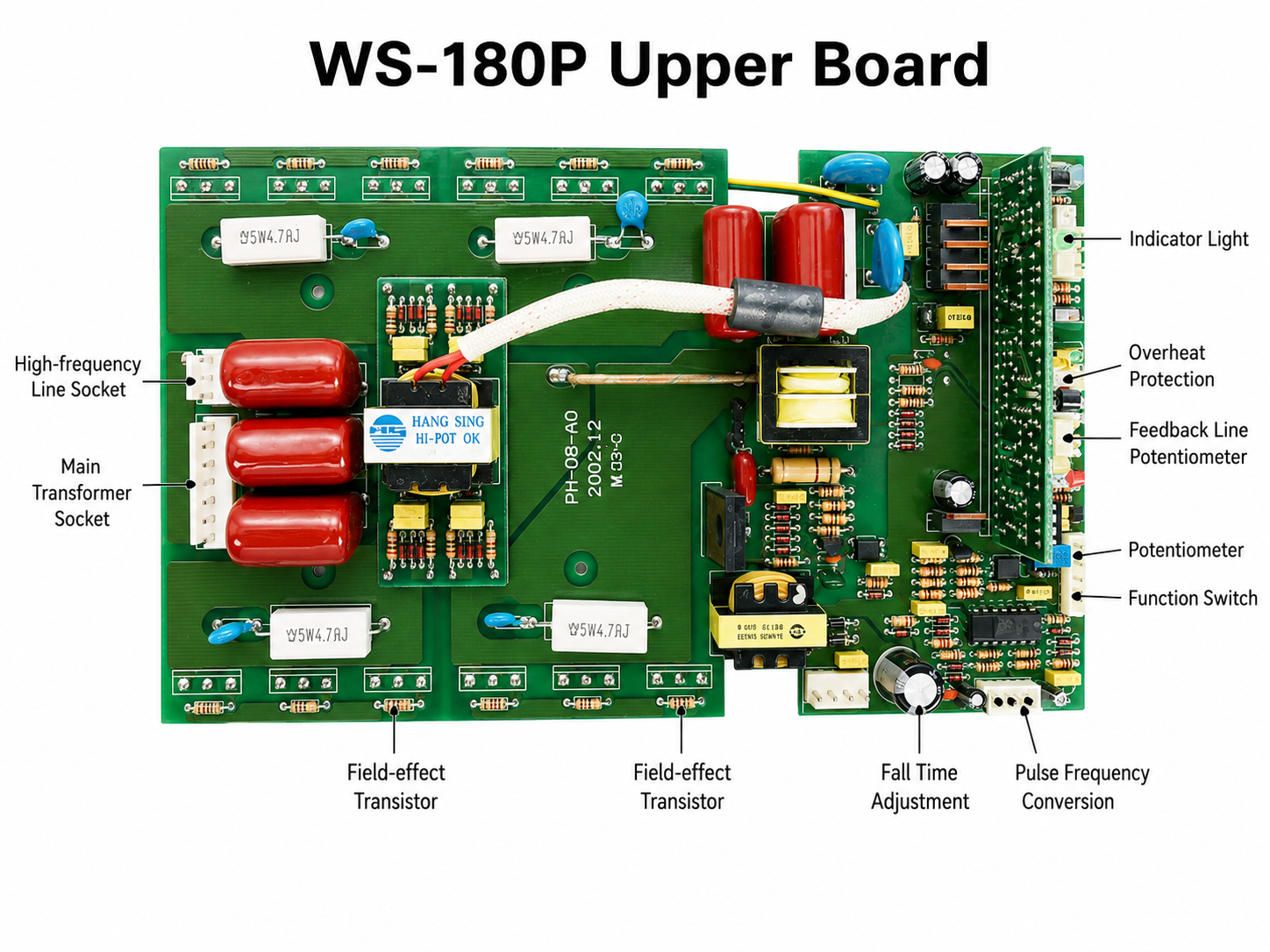

Annotated WS-180P upper board image

This board view is for orientation before board-level checks. Use it to identify the high-frequency line socket, main transformer socket, MOSFET area, feedback controls, protection input and timing/frequency adjustment areas before measuring or replacing parts.

WS-180P upper board annotated component reference with high-frequency line socket, main transformer socket, field-effect transistor areas, indicator light, overheat protection, feedback potentiometer, fall time adjustment and pulse frequency conversion
WS-180P upper board component-orientation image. Confirm the actual board revision before using connector positions for live measurements.
Input / HF sideHigh-frequency line socket, main transformer socket and power-switching region.
Control sideIndicator light, overheat protection, feedback line potentiometer, potentiometer and function switch.
Adjustment sideFall-time adjustment and pulse-frequency conversion area used during TIG control diagnosis.

How to use this page later

When new board-layout images are available, keep them on this URL and group them by board side, connector area, control area and fault evidence.

Related WS / TIG references

Safety note

This page is for qualified repair technicians. TIG welding machines may contain lethal voltage and charged capacitors even after power is removed. Do not use a board image as a live-measurement map unless the exact board revision, isolation state and discharge state are confirmed.
